| Brand Name: | Xianfeng |
| Model Number: | HC50 |
| MOQ: | 1 |
| Price: | Negotiable |
| Delivery Time: | 2-3 Weeks |
| Payment Terms: | T/T |

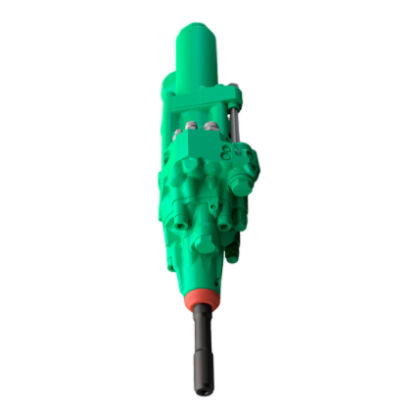

The Montabert HC50 is a compact high-efficiency hydraulic rock drill engineered for light to medium-duty drilling applications. Weighing only 118-122 kg, it delivers 7-13 kW percussion output with 40-62.5 Hz impact frequency at 90-140 bar operating pressure, covering 45-76 mm hole diameters. Its lightweight frame and optimized hydraulic system enable easy integration with a broad range of carriers while maintaining low energy consumption and high reliability in demanding mining, tunneling, and construction environments.
| Parameter | Value |
|---|---|
| Model | HC50 |
| Drilling Method | Hydraulic |
| Weight | 118 - 122 kg |
| Length | 825 - 848 mm |
| Hole Diameter | 45 - 76 mm |
| Impact Power | 7 - 13 kW |
| Impact Frequency | 40 - 62.5 Hz (2400 - 3750 bpm) |
| Operating Pressure | 90 - 140 bar |
| Rotation Speed | Up to 300 rpm |
| Shank Adapter | R32F, R32M, R38M, T38M |
